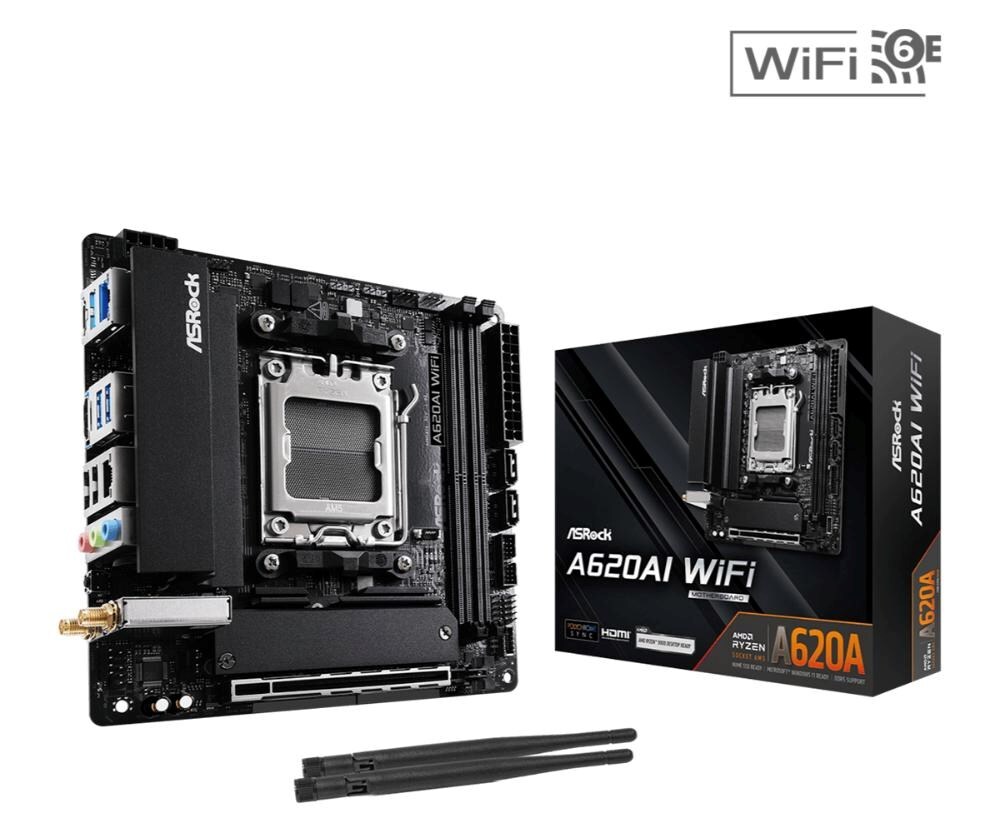

ASROCK A620AI WIFI

Built to deliver reliable performance with versatile features, perfect for daily tasks.Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.DesignDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Unique Feature

Superb Productivity- Dual Channel DDR5Rock-Solid Durability- 8+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISCUltrafast Connectivity- 2.5G LAN, 802.11axe Wi-Fi 6E ModuleEZ Update- BIOS Flashback Button- ASRock Auto Driver Installer

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Chipset

- AMD A620A

Memory

- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Expansion Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules Please refer to Memory Support List on ASRock's website for more information.Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio

LAN

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control 1 x Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111)

Wireless Communication module

- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.2- Supports MU-MIMOWi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.A 6GHz compatible router is required for 6E functionality.

Expansion Slots

CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15µ Gold Contact in VGA PCIe Slot (PCIE1) PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.Supports NVMe SSD as boot disks

Storage

CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modeChipset:- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes- 2 x SATA3 6.0 Gb/s Internal I/O Connectorss M2_1 is the first priority for M.2 installation.Supports NVMe SSD as boot disks

RAID

- Supports RAID 0 and RAID 1 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10

USB

CPU:- 1 x USB 3.2 Gen2 Type-C (Rear)- 2 x USB 3.2 Gen2 Type-A (Rear) Chipset:- 1 x USB 3.2 Gen1 Type-C (Front)- 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)- 4 x USB 2.0 (2 Rear, 2 Front) All USB ports support ESD Protection

Internal I/O Connectors

- 2 x Addressable LED Headers- 1 x CPU Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)- 1 x Chassis Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)- 1 x AIO Pump Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Internal I/O Connectors- 1 x 8 pin 12V Power Internal I/O Connectors (Hi-Density Power Internal I/O Connectors)- 1 x Front Panel Audio Internal I/O Connectors- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header Support in total up to 5V/3A, 15W LED Strip CPU_FAN1, CHA_FAN1 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN1, CHA_FAN1 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Back Panel I/O Ports

- 2 x Antenna Ports- 1 x HDMI Port- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 1 x USB 3.2 Gen1 Port- 2 x USB 2.0 Ports- 2 x RJ-45 LAN Ports- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNCUEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x I/O Shield- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 2 x Screws for M.2 Sockets

Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm- 8 Layer PCB

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
