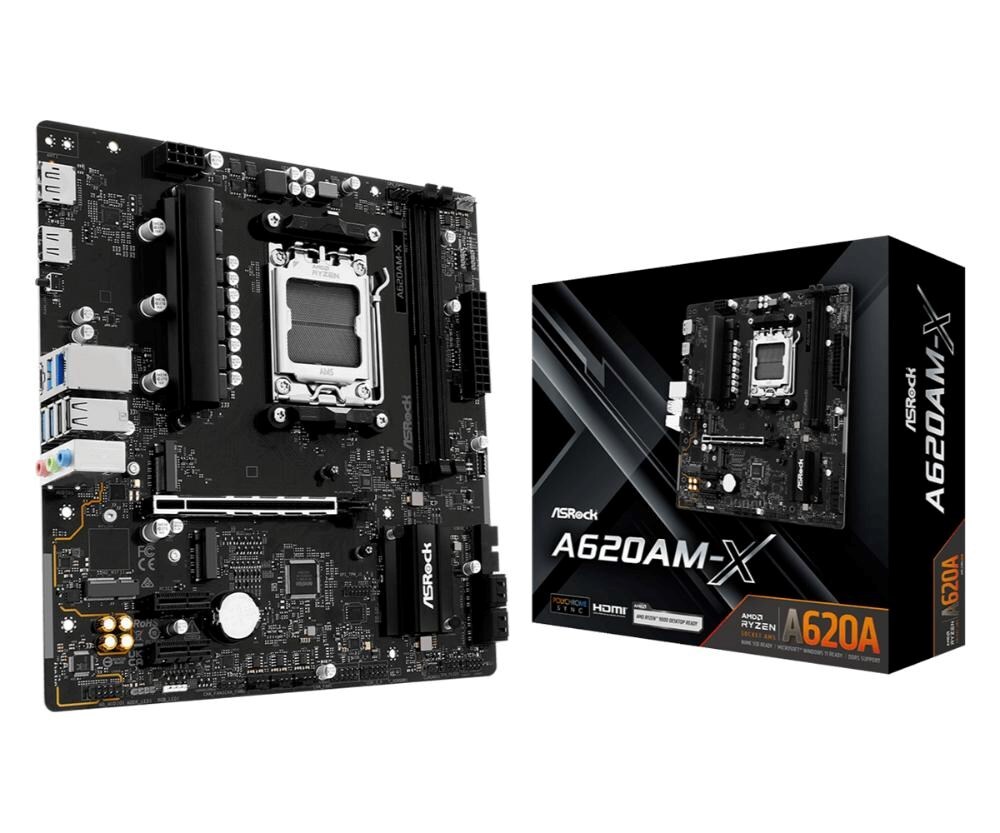

ASROCK A620AM-X

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

Unique Feature

Superb Productivity- Dual Channel DDR5Rock-Solid Durability- 6+1+1 Power Phase, Dr.MOS for VCoreUltrafast Connectivity- 2.5G LANEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status Checker

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series ProcessorsPlease refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/)

Chipset

- AMD A620A

Memory

- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Expansion Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)- Max. capacity of system memory: 128GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modulesPlease refer to Memory Support List on ASRock's website for more information.

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control

Expansion Slots

CPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 modeChipset:- 2 x PCIe 3.0 x1 Expansion Slots (PCIE2 and PCIE3)- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15µ Gold Contact in VGA PCIe Slot (PCIE1) Supports NVMe SSD as boot disks

Storage

CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) modeChipset:- 4 x SATA3 6.0 Gb/s Internal I/O Connectorss Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10

USB

CPU:- 3 x USB 3.2 Gen1 Type-A (Rear) Chipset:- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)- 2 x USB 3.2 Gen1 Type-A (Front)- 6 x USB 2.0 (2 Rear, 4 Front) All USB ports support ESD Protection

Internal I/O Connectors

- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 1 x CPU Fan Internal I/O Connectors (4-pin)- 3 x Chassis/Water Pump Fan Internal I/O Connectorss (4-pin) (Smart Fan Speed Control)- 1 x 24 pin ATX Power Internal I/O Connectors- 1 x 8 pin 12V Power Internal I/O Connectors- 1 x Front Panel Audio Internal I/O Connectors- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CHA_FAN1~3/WP support the fan power up to 2A (24W).CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Back Panel I/O Ports

- 2 x Antenna Mounting Points- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNCUEFI- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant FlashThese utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
